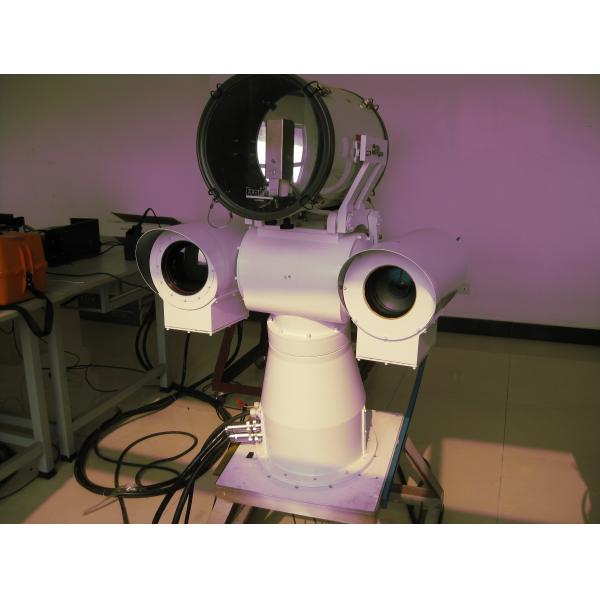

Electro Optical Surveillance Radar System / Reconnaissance Systems For Marine

Brand Name : HEOS
Model Number : HEOS-100B
Place of Origin : Wuhan, China
MOQ : 1
Delivery Time : 30 days
Component type : Uncooled FPA detector,650×480
Response waveband : 8~14μm
Equivalent noise temperature difference : 50mK(25℃)
Video output : Analog video CCIR
Power consumption : ≤5W(25℃)
Operation temperature) : -20℃~+60℃
Contact Now

Electro-optical Radar Warning reconnaissance systems

System specification

(1) Fusion accuracy:distance≤10m,azimuth angle≤0.5°;

(2) Synthesis specification:Achieve the sensor 360° all directional unlimited cover

Passive detection

(1) Working frequency range:6~12GHz;

(2) Blank area cover range:azimuth rotation cover 360°,elevation rotation cover 0°~20°;

(3) Operation distance: Under sight condition, bigger than range of visibility or≥50km(Effective power of target radar>30dBw)

(4) Frequency measurement error:3MHz(r.m.s)

(5) Directional measurement error:2.0°(r.m.s)

(6) Ambient adaptability:the device is able to work under ambient temperature -10℃~+55℃;


(1) Operation frequency:9200~9500MHz;

(2) Azimuth cover:0~360°;

(3) Detection distance:

During pulse operation ≥ 25km(σ=1800m2 ship,target height 10m,Pd=80%,Pf=10-4);

During continuous wave≥22km(σ=1800m2 ship,target height 10m,Pd=80%,Pf=10-4);

(4) Track processing ability:32 batches;

(5) Distance resolution: during pulse operation≤ 20m,during continuous wave ≤ 10m;

(6) Angular resolution:≤ 1.5°;

Optoelectronic device

(1) Operation distance:

In good visibility (≥20km) sunny weather, detection distance for 24m×8m boats at sea ≥15km,recognition distance≥8km.

(2) Surveillance range:azimuth 360°,elevation -30°~+65°(software adjustable);

(3) Tracking performance:

Maximum angular speed ≥40°/s,

Maximum acceleration≥60°/s2,

Minimum tracking speed≤0.1°/s;

(4) Protection

The structure is designed for severe weather, level is IP66.

(5) CCD high resolution camera system

Image component:≥1/3” interlacing CMOS

Pixel:1920(H)×1080 (V)

Horizontal resolution:600 TV lines

Minimum illumination: 0.05Lux@F1

Focal length:12mm~360mm continuous zooming

Aperture:F2.6 @360

(7) Uncooled infrared imaging subsystem

Component type:320×240 uncooled non refrigeration vanadium oxide focal plane array

Pixel dimension:25×25μm

Response waveband:7.5~13.5µm


Focal length: 44/132mm
